Drilled Shaft and Caisson Foundations: Advanced Techniques for Heavy Structures in Nigeria

In the Nigerian construction industry, the foundation of a building is critical to its stability and longevity. For heavy structures, where the loads are significant and the soil conditions are often challenging, traditional shallow foundations may not suffice. This is where advanced foundation techniques such as drilled shafts and caisson foundations come into play. These deep foundation systems are engineered to transfer the load of heavy structures to deeper, more stable soil layers or bedrock, ensuring the building’s safety and durability.

This article will explore the applications, benefits, and construction processes of drilled shaft and caisson foundations in Nigeria, providing insights into their role in supporting heavy structures. By understanding these advanced techniques, construction professionals can make informed decisions when designing and executing projects in the diverse and often challenging Nigerian terrain.

Understanding Deep Foundations: Drilled Shafts and Caissons

Deep foundations are designed to extend deeper into the ground, transferring the load of a structure to a more stable layer of soil or rock. Unlike shallow foundations, which spread the load near the surface, deep foundations penetrate through weaker soil layers to reach stronger substrata. Drilled shafts and caisson foundations are two prominent types of deep foundations widely used in Nigeria for supporting heavy structures such as high-rise buildings, bridges, and industrial facilities.

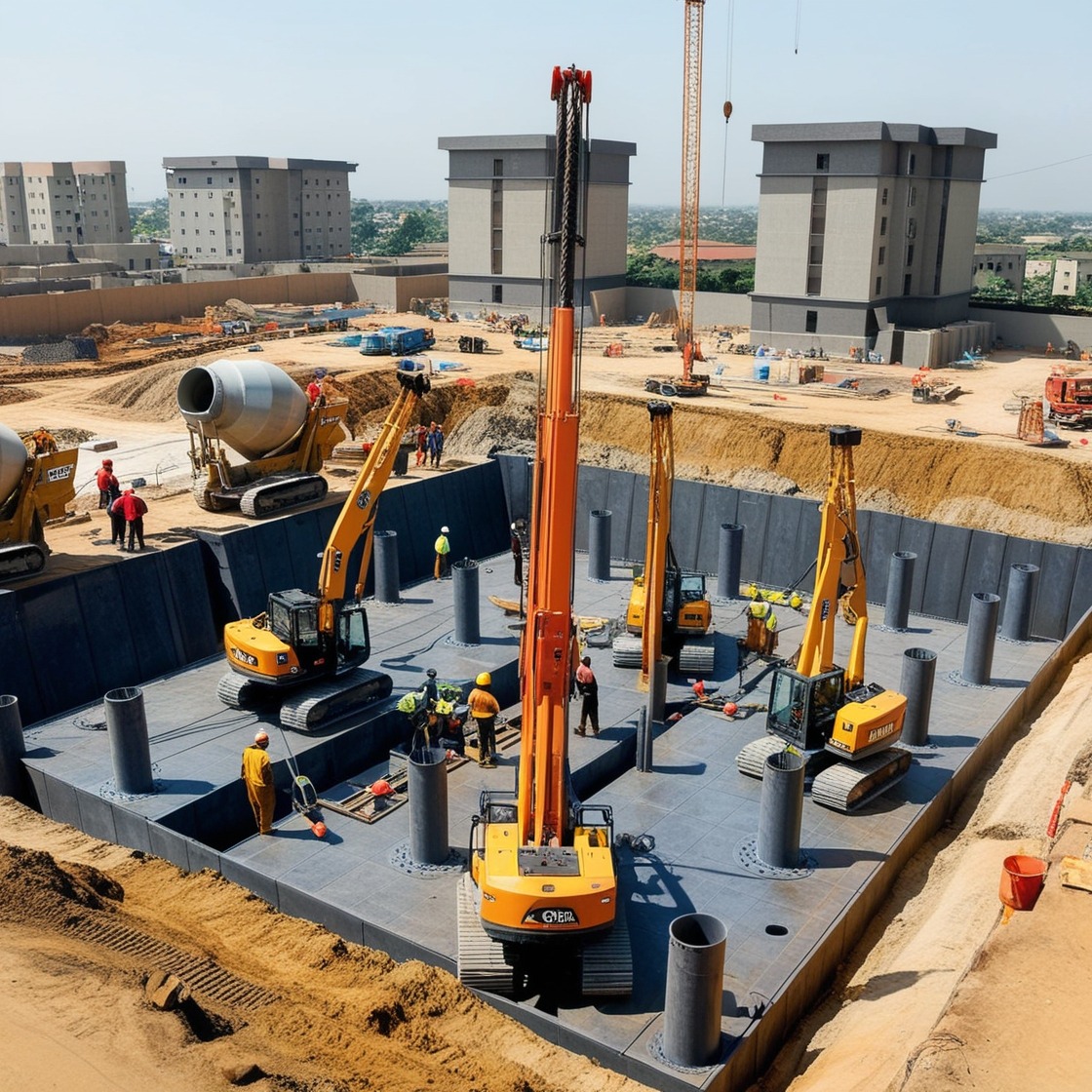

Drilled Shaft Foundations

Drilled shafts, also known as drilled piers or bored piles, are cylindrical columns constructed by drilling a hole into the ground and then filling it with concrete. These shafts are typically reinforced with steel to enhance their load-bearing capacity. Drilled shafts are particularly useful in situations where the soil near the surface is too weak to support the building’s weight, but a stable layer exists at a deeper level.

Key Features of Drilled Shaft Foundations

• Depth and Diameter: Drilled shafts can range from a few meters to more than 60 meters in depth, depending on the project requirements. The diameter of the shaft typically varies between 0.6 meters to 3 meters.
• Load-Bearing Capacity: The load-bearing capacity of a drilled shaft depends on the strength of the soil or rock at the base and the friction along the sides of the shaft. This makes them suitable for heavy structures where significant load transfer is required.
• Versatility: Drilled shafts can be constructed in various soil conditions, including loose or soft soils, by using techniques such as casing and slurry to maintain the stability of the borehole during drilling.
• Minimal Vibration: Unlike driven piles, which can cause significant vibrations and noise, drilled shafts are constructed with minimal disturbance to the surrounding area, making them ideal for urban settings.

Caisson Foundations

Caisson foundations, often referred to as open caissons or drilled caissons, are another type of deep foundation used in heavy construction. Caissons are watertight retaining structures constructed by sinking a prefabricated or cast-in-place shaft into the ground and then filling it with concrete. They are commonly used in areas with high water tables, such as coastal regions or sites near rivers, where traditional foundations might be compromised by water infiltration.

Key Features of Caisson Foundations

• Sinking Method: Caissons are typically sunk into place by removing soil from inside the caisson, allowing it to gradually sink under its own weight. This process continues until the caisson reaches the desired depth.
• Water Resistance: The watertight nature of caissons makes them ideal for projects in areas with high water tables or where groundwater is present. They are commonly used in bridge construction, where foundations must be placed below the waterline.
• Large Load-Bearing Area: Caissons provide a large load-bearing area, making them suitable for supporting heavy structures like bridges, towers, and offshore platforms.
• Durability: Caissons are highly durable and resistant to corrosion, making them a long-lasting solution for critical infrastructure projects.

The Nigerian Building Construction Process for Drilled Shaft and Caisson Foundations

The construction process for drilled shafts and caisson foundations in Nigeria follows a systematic approach that includes site investigation, design, and execution. Given the variability of soil conditions across Nigeria, a thorough understanding of the local geology is crucial for successful implementation

Site Investigation and Soil Testing

Before designing any foundation, it is essential to conduct a comprehensive site investigation to determine the soil profile, load-bearing capacity, and the presence of groundwater. This process typically involves:

• Geotechnical Surveys: Geotechnical engineers perform soil borings, sampling, and in-situ testing to assess the soil’s properties. This information is used to determine the depth at which stable soil or rock exists, guiding the design of the foundation.
• Soil Classification: The soil is classified based on its grain size, density, and moisture content. Common soil types in Nigeria include laterite, clay, and sandy soils, each presenting unique challenges for foundation design.
• Groundwater Analysis: In areas with high water tables, understanding the groundwater conditions is vital for designing caisson foundations. Dewatering techniques may be required to manage water during construction.

Design Considerations

The design of drilled shaft and caisson foundations is influenced by several factors, including the load-bearing requirements, soil conditions, and environmental considerations. The design process includes:

• Load Calculations: Engineers calculate the loads that the foundation must support, including the dead load (weight of the structure), live load (occupants and movable objects), and dynamic loads (wind, seismic activity).
• Shaft or Caisson Dimensions: Based on the load calculations and soil conditions, the appropriate depth, diameter, and reinforcement of the drilled shaft or caisson are determined. In areas with weaker soils, the shaft may need to be deeper to reach stable strata.
• Reinforcement Design: Steel reinforcement is designed to provide additional strength to the concrete shaft or caisson, particularly in areas prone to seismic activity or where the soil’s lateral support is weak.
• Slurry and Casing Requirements: In loose or soft soils, a slurry mixture or temporary casing may be used to stabilize the borehole during the construction of drilled shafts.

Construction Process

The construction of drilled shaft and caisson foundations involves several key steps, each critical to ensuring the foundation’s integrity and performance.

Construction of Drilled Shaft Foundations

• Drilling: A rotary drilling rig is used to bore a hole into the ground to the specified depth. In unstable soils, temporary casing or drilling slurry may be used to maintain borehole stability.
• Reinforcement Installation: A steel reinforcement cage is lowered into the borehole, providing the necessary structural support for the shaft.
• Concrete Placement: Concrete is poured into the borehole using a tremie pipe to prevent segregation. The concrete is placed from the bottom up, ensuring a continuous, homogenous shaft.
• Casing Removal: If a temporary casing was used, it is carefully removed as the concrete is placed, ensuring that the borehole remains stable.
• Curing: The concrete is allowed to cure, achieving the necessary strength before further construction continues.

Construction of Caisson Foundations

• Excavation and Sinking: The caisson is either prefabricated and sunk into place or cast in-situ. Soil is excavated from inside the caisson, causing it to sink gradually under its own weight.
• Groundwater Management: In areas with high water tables, dewatering techniques are employed to keep the excavation dry. Pumps may be used to remove water from inside the caisson.
• Reinforcement and Concreting: Once the caisson reaches the desired depth, steel reinforcement is installed, and the caisson is filled with concrete, creating a solid, load-bearing structure.
• Backfilling: After the concrete has cured, the surrounding area is backfilled, and the foundation is integrated into the overall building structure.

Applications and Benefits of Drilled Shaft and Caisson Foundations in Nigeria

Drilled shaft and caisson foundations offer several advantages, making them the preferred choice for supporting heavy structures in Nigeria’s diverse construction landscape.

Applications

• High-Rise Buildings: In urban centers like Lagos and Abuja, where land is scarce and vertical construction is prevalent, drilled shafts provide the necessary support for high-rise buildings with significant loads.
• Bridges and Overpasses: Caisson foundations are commonly used in bridge construction, particularly in areas with rivers or high water tables, where stability and resistance to water infiltration are critical.
• Industrial Facilities: Heavy industrial structures, such as factories, power plants, and offshore platforms, require foundations that can withstand substantial loads and challenging environmental conditions. Drilled shafts and caissons are ideal for these applications.
• Marine Structures: In coastal regions of Nigeria, caisson foundations are used for constructing docks, piers, and offshore platforms, where resistance to water and wave action is essential.

Benefits

• Load-Bearing Capacity: Both drilled shafts and caissons can support significant loads, making them suitable for heavy structures in various soil conditions.
• Versatility: These foundations can be adapted to a wide range of soil types and site conditions, including those with high water tables or soft, unstable soils.
• Minimal Disturbance: The construction of drilled shafts and caissons generates minimal vibrations and noise, making them ideal for urban areas and sensitive environments.
• Durability: These foundations are designed for long-term performance, with resistance to environmental factors such as water infiltration, corrosion, and seismic activity.
• Cost-Effectiveness: While deep foundations are generally more expensive to construct than shallow foundations, their ability to provide a stable, long-lasting base for heavy structures can result in cost savings over the building’s lifespan by reducing maintenance and repair needs.

Conclusion

Drilled shaft and caisson foundations represent advanced techniques in the Nigerian construction industry, providing the necessary support for heavy structures in challenging soil conditions. As Nigeria continues to develop its infrastructure, the demand for these deep foundation systems will likely grow, particularly in urban centers and coastal regions.

For construction professionals, understanding the applications, design considerations, and construction processes associated with drilled shafts and caissons is essential for delivering durable, safe, and cost-effective projects. By leveraging these advanced techniques, Nigeria can continue to build the infrastructure necessary to support its economic growth and development.

In summary, drilled shaft and caisson foundations offer a robust solution for supporting heavy structures in Nigeria, ensuring that buildings, bridges, and industrial facilities stand the test of time, regardless of the challenges posed by the local soil and environmental conditions.
