Comprehensive Guide to Foundations in Nigerian Construction: Types, Selection, and Best Practices

Introduction

Foundations are the bedrock upon which all structures stand, making them a critical component in any construction project. In Nigeria, where diverse soil types, environmental conditions, and construction practices prevail, the selection and implementation of the correct foundation type are crucial. A foundation serves as the structural base of a building, transferring the load to the ground and ensuring stability, safety, and longevity. Choosing the wrong foundation or improper installation can lead to disastrous consequences, including structural failures that can result in financial loss, property damage, or even loss of life.

This comprehensive guide delves into the various types of foundations used in the Nigerian construction industry, offering insights into how these foundations are selected, designed, and implemented. We will explore shallow and deep foundations, their applications, and best practices for ensuring that they meet the structural and environmental demands of Nigerian construction projects. Additionally, this guide will discuss the critical factors influencing foundation selection, such as soil conditions, load-bearing capacity, building type, and environmental considerations.

By the end of this article, readers will have a thorough understanding of the different foundation types used in Nigeria, the factors that drive their selection, and the best practices to ensure that these foundations contribute to safe, durable, and successful construction projects.

Overview of Foundations in Nigerian Construction

A foundation is the part of a structure that anchors it to the ground, distributing its weight to prevent settlement and instability. Foundations are typically classified into two broad categories: shallow foundations and deep foundations. The choice between these two categories depends on various factors, including the load-bearing requirements of the structure, soil conditions, and environmental factors.

In Nigeria, where the construction industry is rapidly growing, understanding the nuances of foundation selection is essential for ensuring that buildings are structurally sound and capable of withstanding the local conditions. This section will provide a brief overview of the two main types of foundations used in Nigeria and their respective applications.

Shallow Foundations

Shallow foundations are used for structures with relatively light loads, where the soil near the surface has sufficient strength to support the building. These foundations are typically less than three meters deep and are designed to spread the load over a wide area of soil. Common types of shallow foundations include spread footings, strip footings, and raft (or mat) foundations.

Deep Foundations

Deep foundations are necessary when the surface soil lacks the strength to support the structure’s load, requiring the foundation to be anchored in deeper, more stable soil or rock layers. These foundations are typically more than three meters deep and are used for structures with heavy loads or in challenging soil conditions. Types of deep foundations include pile foundations, drilled shaft foundations, and caisson foundations.

Shallow Foundations: Types and Applications

Shallow foundations are widely used in Nigerian construction, particularly for residential buildings, commercial structures with lighter loads, and small-scale infrastructure projects. This section will explore the different types of shallow foundations, their specific applications, and the factors that make them suitable for certain projects.

Spread Footings

Definition and Design

Spread footings, also known as pad foundations, are one of the most common types of shallow foundations used in Nigeria. A spread footing consists of a wide base of concrete that “spreads” the load of the building over a larger area, reducing the pressure on the underlying soil. This type of foundation is typically square, rectangular, or circular, depending on the shape of the column or wall it supports.

Applications

Spread footings are suitable for:

• Single-story residential buildings: With relatively light loads, spread footings provide adequate support for small homes and bungalows.

• Small commercial structures: Shops, small office buildings, and other low-rise structures with moderate loads often use spread footings.

• Load-bearing walls: Spread footings can support load-bearing walls, distributing the weight of the wall over a broader area.

Advantages

• Cost-effective: Spread footings require less material and labor compared to deeper foundations, making them an economical choice for smaller projects.

• Simple construction: The design and installation of spread footings are straightforward, requiring less specialized equipment and expertise.

Limitations

• Not suitable for heavy loads: Spread footings are generally inadequate for structures with heavy loads or those located in areas with poor soil conditions.

• Limited to stable soil conditions: This foundation type is best suited to sites with stable, uniform soil that can bear the load without significant settlement.

Strip Footings

Definition and Design

Strip footings, also known as continuous footings, consist of a continuous strip of concrete that supports load-bearing walls or multiple columns. This type of foundation distributes the load along the length of the structure, rather than concentrating it in individual footings. Strip footings are typically used where the loads are heavier than those supported by spread footings.

Applications

Strip footings are commonly used for:

• Load-bearing walls: They provide continuous support for load-bearing walls in residential and commercial buildings.

• Multi-story buildings: When designed appropriately, strip footings can support the increased loads of multi-story structures.

• Structures on sloping sites: Strip footings can be stepped to accommodate changes in elevation, making them suitable for buildings on sloping terrain.

Advantages

• Uniform load distribution: Strip footings distribute loads evenly along the length of the foundation, reducing the risk of differential settlement.

• Versatile application: Strip footings can be adapted to different building types and soil conditions with proper design adjustments.

Limitations

• More material-intensive: Compared to spread footings, strip footings require more concrete and reinforcement, increasing construction costs.

• Limited to certain soil conditions: Like spread footings, strip footings are best suited to stable soils and may require additional design considerations in weaker soils.

Raft or Mat Foundations

Definition and Design

Raft foundations, also known as mat foundations, involve a large, thick slab of concrete that covers the entire footprint of the building. This slab acts as a “raft,” distributing the building’s load evenly across the entire area of the foundation. Raft foundations are used when the soil’s load-bearing capacity is low, or when the building’s footprint is large, making individual footings impractical.

Applications

Raft foundations are ideal for:

• Large commercial buildings: Shopping malls, office complexes, and warehouses often use raft foundations to support their extensive footprints.

• Structures on soft or expansive soils: In areas with low or variable soil strength, raft foundations provide a stable base that minimizes differential settlement.

• High-rise buildings: When properly designed, raft foundations can support the substantial loads of multi-story buildings.

Advantages

• Even load distribution: Raft foundations spread the load evenly, reducing the risk of uneven settlement and structural issues.

• Suitable for poor soils: Raft foundations can be used on sites with weak or compressible soils, where other foundation types may not be feasible.

Limitations

• High material and labor costs: The extensive use of concrete and reinforcement makes raft foundations more expensive to construct than other shallow foundations.

• Complex design and construction: Raft foundations require careful design and construction oversight to ensure their effectiveness, especially for large or heavily loaded structures.

Deep Foundations: Types and Applications

Deep foundations are essential for projects where shallow foundations cannot provide adequate support. This section examines the different types of deep foundations used in Nigerian construction, their specific applications, and the situations where they are most effective.

Pile Foundations

Definition and Design

Pile foundations consist of long, slender columns made of concrete, steel, or timber that are driven deep into the ground to reach stable soil or rock layers. Piles transfer the load of the structure through weak surface soils to stronger, deeper soils. There are two main types of piles: end-bearing piles, which transfer the load to a strong soil or rock layer at the pile tip, and friction piles, which transfer the load along the length of the pile through friction with the surrounding soil.

Applications

Pile foundations are commonly used for:

• High-rise buildings: Tall structures that exert significant loads on their foundations often rely on pile foundations for support.

• Buildings on soft or unstable soils: Pile foundations are ideal for sites where surface soils are too weak to support the building’s weight.

• Marine and coastal structures: Pile foundations are frequently used for bridges, piers, and other structures built over water or in coastal areas.

Advantages

• Suitable for weak soils: Pile foundations can bypass weak surface soils, transferring the load to deeper, more stable layers.

• Versatile and adaptable: Pile foundations can be designed to accommodate various soil conditions and load requirements.

Limitations

• High cost: The materials, equipment, and labor required for pile foundations make them more expensive than shallow foundations.

• Complex installation: Driving or drilling piles requires specialized equipment and expertise, making the construction process more complicated.

Drilled Shaft Foundations

Definition and Design

Drilled shaft foundations, also known as drilled piers or caissons, involve drilling a large, deep hole into the ground and filling it with concrete. A reinforcement cage is typically placed inside the hole before the concrete is poured, providing additional strength. Drilled shafts are used when the soil near the surface is weak, or when there is a need to minimize vibrations, noise, or disruption to surrounding structures.

Applications

Drilled shaft foundations are suitable for:

• High-rise buildings: Drilled shafts provide strong, deep support for tall structures with heavy loads.

• Bridges and infrastructure projects: Drilled shafts are commonly used for the foundations of bridges, transmission towers, and other infrastructure.

• Sites with high water tables: Drilled shafts can be installed in areas with high water tables, where other foundation types may be impractical.

Advantages

• High load-bearing capacity: Drilled shafts can support significant loads, making them ideal for large or heavily loaded structures.

• Minimal disruption: The drilling process produces less noise and vibration than pile driving, reducing the impact on nearby buildings and residents.

Limitations

• Expensive and time-consuming: Drilled shafts require specialized equipment and skilled labor, increasing the cost and duration of construction.

• Challenging in certain soil conditions: Drilling through hard rock or dealing with water infiltration can complicate the installation of drilled shafts.

Caisson Foundations

Definition and Design

Caisson foundations, a type of deep foundation similar to drilled shafts, involve the construction of large-diameter, watertight chambers that are sunk into the ground and filled with concrete. Caissons are used in areas with high water tables or where the soil is too weak to support the structure using other foundation types. The process involves excavating the soil within the caisson and gradually sinking it to the desired depth before filling it with concrete.

Applications

Caisson foundations are used for:

• Bridges and marine structures: Caissons are ideal for the foundations of bridges, piers, and other structures built in or near water.

• High-rise buildings in challenging soil conditions: Caissons provide deep, stable support for tall buildings on sites with weak or variable soils.

• Infrastructure projects: Caissons are used for large-scale infrastructure projects, such as dams, power plants, and offshore platforms.

Advantages

• Deep, stable support: Caissons can reach stable soil or rock layers deep below the surface, providing strong support for large structures.

• Effective in high water tables: The watertight design of caissons makes them suitable for sites with high water tables or where groundwater is a concern.

Limitations

• Complex and costly: Caisson construction is labor-intensive and requires specialized equipment, making it one of the more expensive foundation options.

• Time-consuming: The process of excavating and sinking caissons is slow, which can extend the overall project timeline.

Factors Influencing Foundation Selection in Nigerian Construction

Selecting the appropriate foundation for a construction project in Nigeria involves more than just understanding the different types of foundations available. Several key factors must be considered to ensure that the chosen foundation will adequately support the structure and withstand the environmental conditions of the site. This section explores the critical factors that influence foundation selection in Nigerian construction projects.

Soil Conditions

Soil conditions are arguably the most important factor in foundation selection. The type, strength, and stability of the soil at the construction site will determine whether a shallow or deep foundation is required. Soil tests, such as standard penetration tests (SPT) and borehole sampling, are conducted to assess the soil’s load-bearing capacity, moisture content, and other characteristics.

Key Considerations:

• Load-bearing capacity: The soil’s ability to support the weight of the structure is a primary concern. Weak or compressible soils may require deep foundations to reach stable layers.

• Soil type: Different soils, such as clay, silt, sand, or rock, have varying properties that affect foundation choice. For example, clay soils may expand and contract with moisture changes, requiring special foundation considerations.

• Soil uniformity: Uniform soil conditions across the site are ideal, but in cases where soil properties vary, the foundation design must account for potential differential settlement.

Building Type and Load Requirements

The type of building and its load requirements are critical factors in determining the appropriate foundation. High-rise buildings, for example, exert significantly more load on their foundations than single-story residential structures. The foundation must be designed to distribute this load evenly and prevent excessive settlement or structural failure.

Key Considerations:

• Building height and load: Taller buildings require foundations with greater load-bearing capacity to support the increased weight.

• Building use: The intended use of the building can influence foundation design. For example, industrial buildings with heavy machinery may require more robust foundations than office buildings.

• Structural design: The distribution of loads within the building, such as concentrated loads from columns or distributed loads from walls, will affect foundation design.

Environmental Factors

Environmental conditions at the construction site can significantly impact foundation selection. Factors such as high water tables, seismic activity, and soil erosion must be considered to ensure the foundation’s long-term stability and performance.

Key Considerations:

• Water table: High water tables can lead to foundation issues such as flooding, water infiltration, and hydrostatic pressure. Foundations in these areas may require waterproofing, drainage systems, or specialized designs like caissons.

• Seismic activity: In regions prone to earthquakes, foundations must be designed to withstand seismic forces. This may involve using deep foundations or incorporating seismic design principles into the foundation.

• Soil erosion: Sites prone to erosion, such as those near rivers or on slopes, may require foundations that resist shifting or settlement due to soil movement.

Cost and Budget Constraints

While the technical aspects of foundation selection are crucial, cost considerations also play a significant role. The budget for the project will influence the choice of foundation, with some types being more expensive to design and construct than others.

Key Considerations:

• Material and labor costs: Shallow foundations like spread footings and strip footings are generally less expensive than deep foundations. However, the complexity of the project and the need for specialized materials or equipment can increase costs.

• Long-term performance: While it may be tempting to choose a less expensive foundation, it’s important to consider the long-term performance and maintenance costs. A foundation that fails prematurely can lead to significant repair expenses.

Site Accessibility and Construction Constraints

The accessibility of the construction site and any physical constraints must also be taken into account when selecting a foundation. Factors such as the availability of construction equipment, space for excavation, and proximity to neighboring structures can affect the foundation choice.

Key Considerations:

• Access to equipment: Sites in remote or congested areas may have limited access to heavy construction equipment, influencing the choice of foundation.

• Excavation challenges: Deep foundations require extensive excavation, which may not be feasible in areas with limited space or where excavation could damage nearby structures.

• Environmental impact: Foundation construction can have environmental impacts, such as disrupting local ecosystems or causing soil erosion. Minimizing these impacts may require choosing a foundation with a smaller footprint or less invasive construction methods.

Best Practices for Foundation Construction in Nigeria

Once the appropriate foundation type has been selected, the focus shifts to the construction process. Following best practices during construction ensures that the foundation will perform as intended and provide the necessary support for the building. This section outlines key best practices for foundation construction in Nigeria, from site preparation to quality control.

Site Preparation and Soil Testing

Proper site preparation is the first step in successful foundation construction. This involves clearing the site of any debris, vegetation, or existing structures and conducting thorough soil testing to inform the foundation design.

Key Steps:

• Soil testing: Conduct comprehensive soil tests to determine the soil’s load-bearing capacity, moisture content, and other relevant properties. This information is critical for designing a foundation that will perform well under the site’s specific conditions.

• Site clearance: Remove all obstacles, such as trees, rocks, and old foundations, that could interfere with the construction process. Ensure the site is level and stable before beginning excavation or foundation work.

Excavation and Foundation Layout

Accurate excavation and layout are essential for ensuring that the foundation is constructed according to the design specifications. Mistakes at this stage can lead to costly errors or structural issues later in the project.

Key Steps:

• Excavation: Carefully excavate the site to the required depth, following the foundation design plans. Ensure that the excavation is level and free of loose soil or debris.

• Foundation layout: Mark out the foundation’s location on the site using stakes, string lines, or other tools. Double-check measurements to ensure accuracy before proceeding with construction.

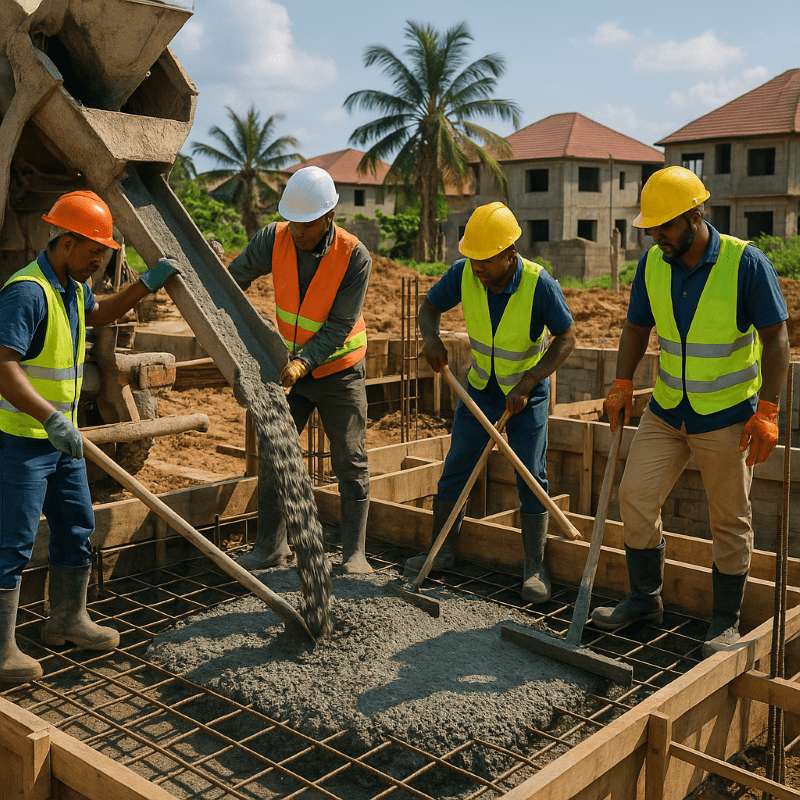

Concrete Pouring and Reinforcement

Concrete pouring is a critical stage in foundation construction, as it forms the structural base of the building. Proper reinforcement with steel bars or mesh is also essential for adding strength and stability to the foundation.

Key Steps:

• Reinforcement placement: Place steel reinforcement bars or mesh according to the foundation design. Ensure that the reinforcement is properly tied and positioned to prevent movement during concrete pouring.

• Concrete mixing: Use high-quality concrete with the appropriate mix of cement, sand, gravel, and water. The mix should meet the design specifications for strength and durability.

• Concrete pouring: Pour the concrete evenly into the foundation forms, ensuring that it fills all voids and gaps. Use vibration tools to remove air pockets and ensure a solid, compact foundation.

• Curing: Allow the concrete to cure for the recommended time, keeping it moist to prevent cracking. Proper curing is essential for achieving the desired strength and durability.

Waterproofing and Drainage

In areas with high water tables or heavy rainfall, waterproofing and drainage are crucial for protecting the foundation from water damage. Proper waterproofing prevents water infiltration, while effective drainage systems help manage surface water and groundwater.

Key Steps:

• Waterproofing: Apply waterproofing membranes or coatings to the foundation walls and floors to prevent water from penetrating the concrete. Focus on areas that are below ground level or in contact with soil.

• Drainage systems: Install perimeter drains, French drains, or sump pumps to manage water around the foundation. These systems help direct water away from the building and reduce hydrostatic pressure on the foundation walls.

Quality Control and Inspections

Quality control is an ongoing process throughout foundation construction. Regular inspections and testing ensure that the work meets design specifications and industry standards, reducing the risk of structural issues or foundation failure.

Key Steps:

• On-site inspections: Conduct regular inspections of the foundation work, including excavation, reinforcement placement, concrete pouring, and curing. Address any issues or discrepancies immediately to prevent further problems.

• Testing: Perform concrete strength tests, such as compressive strength tests, to verify that the concrete meets the required specifications. Test the soil compaction and load-bearing capacity if necessary.

• Documentation: Keep detailed records of all inspections, tests, and construction activities. This documentation is important for future reference and can help resolve any disputes or issues that arise later.

Conclusion

Foundation construction is a critical aspect of any building project, particularly in Nigeria, where diverse soil conditions, environmental challenges, and construction practices must be carefully navigated. Understanding the different types of foundations—shallow and deep—and the factors that influence their selection is essential for ensuring the stability, safety, and longevity of structures.

By following best practices in site preparation, excavation, concrete pouring, reinforcement, waterproofing, drainage, and quality control, construction professionals in Nigeria can build foundations that stand the test of time. These foundations will not only support the weight of the buildings they underlie but also contribute to the overall durability and success of the construction projects.

In the broader context of building construction, foundations are just one of many critical elements that contribute to the safe and successful completion of a project. By integrating the knowledge of foundation types, selection factors, and best practices into the overall construction process, project managers, engineers, and builders can ensure that their projects are built on solid ground—literally and figuratively. This article, while comprehensive, is a foundation in itself for further exploration and study of the complex and multifaceted world of construction in Nigeria.
